SOLO Motorised Sprayers

The 416 Li and 417 battery-operated sprayers from SOLO are whisper-quiet and free of emissions. With their powerful electric drives, they are the ideal choice when it comes to plant protection in enclosed spaces with large areas requiring treatment. Efficient working practices and high performance are called for in conservatories and greenhouses, too. Of course, these two battery-operated sprayers also perform well outdoors. With one press of the Power button, the powerful pump is barely noticeable but for a quiet humming sound.

The 433 and 434 power sprayer are characterised by their high efficiency over larger areas. This combination is applicable for very tall plantings such as trees and large shrubs, areas containing crops, or in professional horticulture and landscaping. The power is supplied by a 2-stroke and 4-stroke HONDA engine, which has special bearings to protect against vibrations, as well as being easy to start and simple to service.

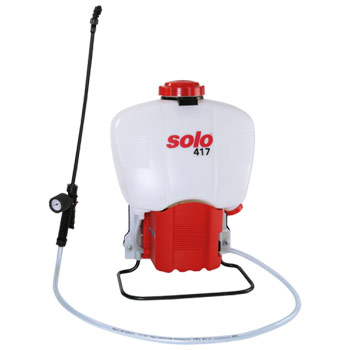

417 Motorised Sprayer

Efficient working practices and high performance are called for in enclosed spaces too, such as conservatories and greenhouses. For such applications, SOLO the battery-operated backpack sprayer 417. Free of emissions and whisper-quiet, it meters out its spray medium from a 18 l transparent tank made from highly resilient UV resistant plastic. Powerful 12 V pumps, switchable to two stages with up to 4.3 bar pressure deliver both the pressure and throughput you need. The low dry weight guarantees tireless working. Once the battery has run out, the charger supplied takes just a few hours to recharge the unit. In addition, the SOLO 417 is equipped with a comfortable padded backpack support frame with wide shoulder straps that are also padded.

417 Datasheet

Nominal capacity litres 18
Dry weight kg 7.6
Spray wand Plastic, 50 cm
Rechargeable battery Lead gel
Capacity V/Ah 11.1 / 7.8
Flat spray nozzle
2-stage spray pressure bar 2.5 / 4.3
Flow rate l/min with standard nozzle Ⅰ 1.07 Ⅱ 1.42
Standard delivery Pressure gauge, hip strap
Sound pressure level dB(A) ≤ 70
Sound power level guaranteed dB(A) ≤ 70
Vibration value m/s² ≤ 2.0

416 Li Motorised Sprayer

Efficient working practices and high performance are called for in enclosed spaces too, such as conservatories and greenhouses. For such applications, SOLO the battery-operated backpack sprayer 416 Li. Free of emissions and whisper-quiet, it meters out its spray medium from a 20 l transparent tank made from highly resilient UV resistant plastic. Powerful 12 V pumps, switchable to two stages with up to 4.3 bar pressure deliver both the pressure and throughput you need. The low dry weight guarantees tireless working. Once the battery has run out, the charger supplied takes just a few hours to recharge the unit. In addition, the SOLO 416 Li is equipped with a comfortable padded backpack support frame with wide shoulder straps that are also padded.

416 Li Datasheet

Nominal capacity litres 20
Dry weight kg 5.2
Spray wand Adjustable, 50-90 cm
Rechargeable battery Lithium-ion
Capacity V/Ah 12 / 7.2
Flat spray nozzle
2-stage spray pressure bar 2.5 / 4.3
Flow rate l/min with standard nozzle Ⅰ 1.07 Ⅱ 1.42
Standard delivery Pressure gauge, hip strap
Sound pressure level dB(A) ≤ 70
Sound power level guaranteed dB(A) ≤ 70
Vibration value m/s² ≤ 2.0
K-value as per Directive 2006/42/EC 2,5 dB(A); 2 m/s2

434 Motorised Sprayer

Solo 434 is a high pressure spray with a fuel tank of 18 litres. Due to the large tank, Solo 434 allows you to work over a long period of time without the need of refill. The Solo 2-stroke engine has a capacity of 28.9 cc that reaches a controlled operating pressure up to 20 bar, and can produce a very fine spray jet constant up to 1.9 l / min.

434 Datasheet

Nominal capacity litres 20
Dry weight kg 9.3
Spray wand 50cm
Engine Capacity 28.9cc

433 H Motorised Sprayer

The SOLO 433 high pressure sprayers features a 4‑stroke engines with plenty of power: The adjustable operating pressure of the push-pull piston pump reaches up to 30 bar, enabling this unit to deliver the finest spray – even high up – at a flow rate of up to 2.4 l/min. Long periods in use without refilling are ensured by a nominal capacity of 20 l. A practical drain connector underneath the tank enables complete draining of any leftover liquid. The SOLO 433 is equipped with a 50 cm stainless steel spray wand and a pressure gauge on the sturdy handle, which allows the pressure to be adjusted for any application. Supplied with a high quality twin nozzle, with stainless steel nozzle discs. With the right accessories you can discover the powerful advantages of this motorised sprayer.

433 H Datasheet

Nominal capacity litres 20
Dry weight kg 9.8
Sound pressure level dB(A) 82
Sound power level guaranteed dB(A) 95
Vibration value m/s² ≤ 2.0
Engine Honda GX 25 4-stroke
Capacity cm³ 25
Stainless steel twin nozzle
Max. adjustable spray pressure bar up to 30
Flow rate l/min with standard nozzle 1.0 l at 5 bar ➡ 1.7 l at 10 bar ➡ 2.0 l at 20 bar ➡ 2.4 l at 30 bar
K-value as per Directive 2006/42/EC 2,5 dB(A); 2 m/s2

Pro-Line Backpack Sprayer Accessories

Accessories for Accu Sprayer 416
Order-No. Description
59 00 789 Charging cable for external battery charging (416, 416 Li, 417)
Accessories for Motorized Sprayer 433 / 434
Order-No. Description
49 00 182 Double nozzle Y-shape
49 00 183 Extension lance 120 cm / 48″
49 00 185 Long distance spray lance 120 cm / 48″, adjustable (incl. 2 nozzles)
49 00 189 Telescopic Spray Tube 120 – 230 cm / 48”- 92”
49 00 300 4-Nozzle Spray Boom 100 cm / 40″ with Spray Tube 75 cm / 30″
‘Above mentioned accessories for model 433/434 in stainless steel design!
49 00 191 High Pressure Hose 10 m including holder
